Chapter0 Page5
Introduction to PIC programming.
Building a power supply
Home Previous Page Next Page Next Chapter

Page: 1 2 3 4 5 6 7 8 9 10 11 12 13 14

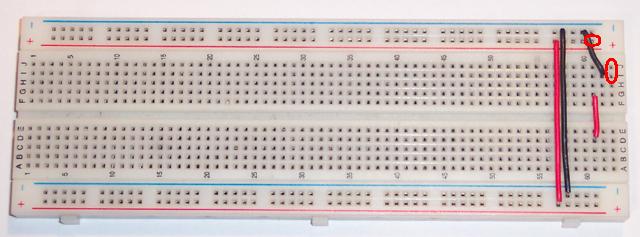

Now cut a piece of Black wire so that it can span across any of the two circled groups of holes as shown.

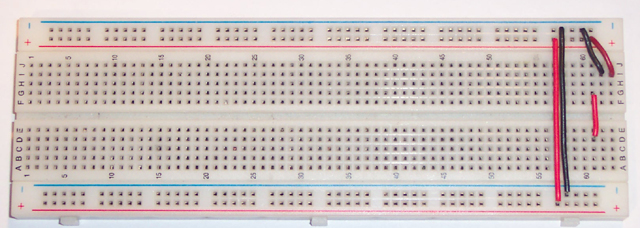

When it is completed it should look something like this:
