Introduction to PIC programming.
Building a power supply
Home Previous Page Next Page Next Chapter

Page: 1 2 3 4 5 6 7 8 9 10 11 12 13 14

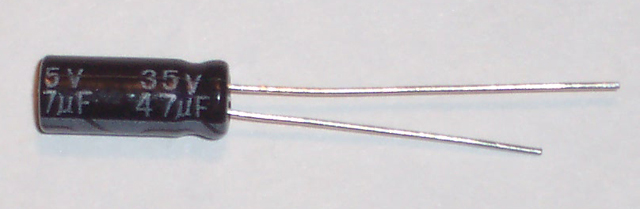

Locate a 47uF Capacitor. If you don't have one, get the larges one you have that is less than 50uF. Look carefully on the side for the identification.

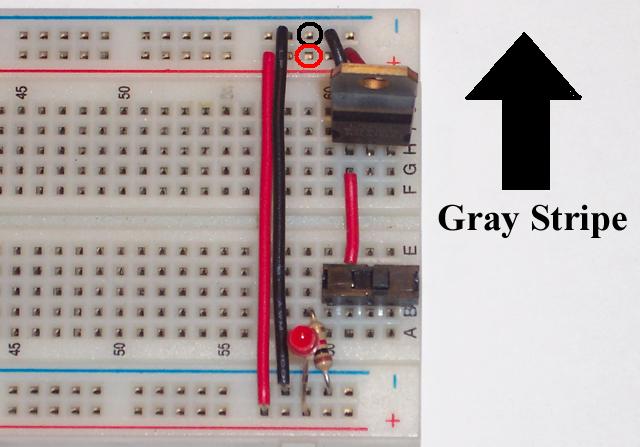

Place the Capacitor in these two holes with the side with the gray stripe (-) connected to the negative (Blue) buss.

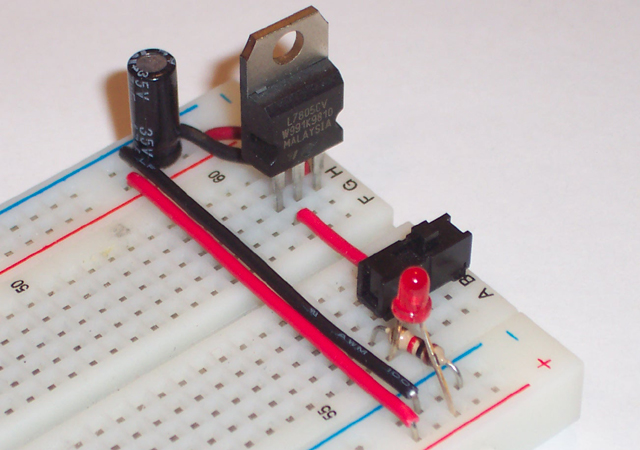

When it is completed it should look like this:

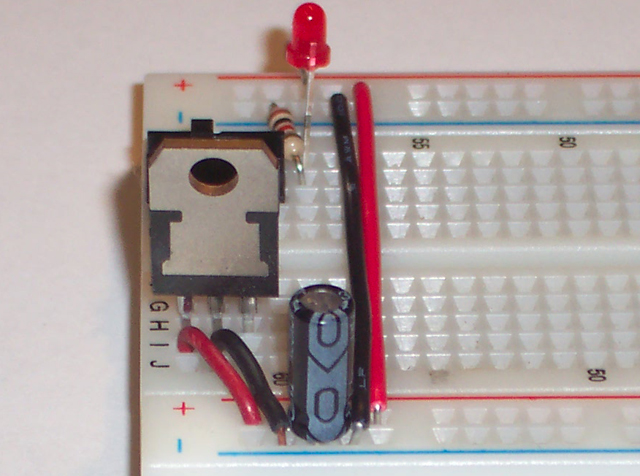

Here is a back side view showing the stripe.
