Chapter0 Page1
Introduction to PIC programming.
Building a power supply
Home Previous Page Next Page Next Chapter

Page: 1 2 3 4 5 6 7 8 9 10 11 12 13 14

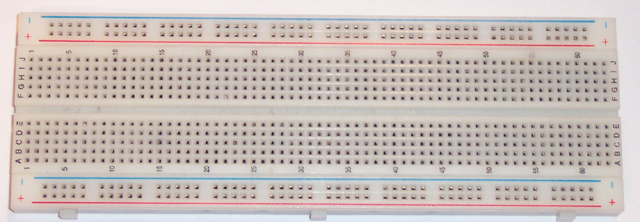

Start by placing your bread board in front of you like this. Note that the column labled 1 is to the left.

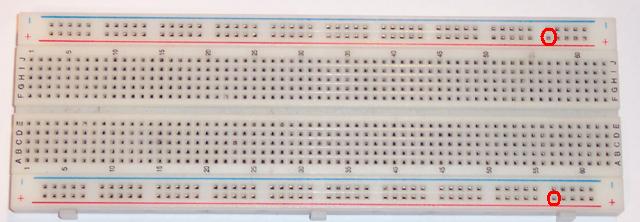

Now cut a jumper able to connect the circled pins. You are now trying to connect the positive buss strip on the top of the breadboard to the botttom of the breadboard.

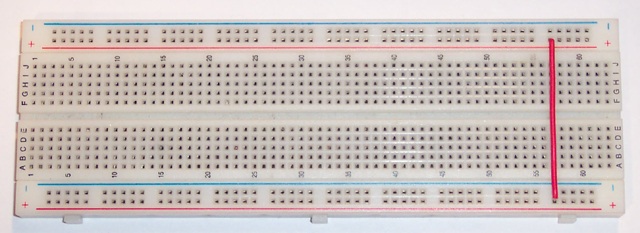

When it is completed it should look like this:
