Couple them together!
Here it is, the half way point. The electric motor is coupled to the transmission.

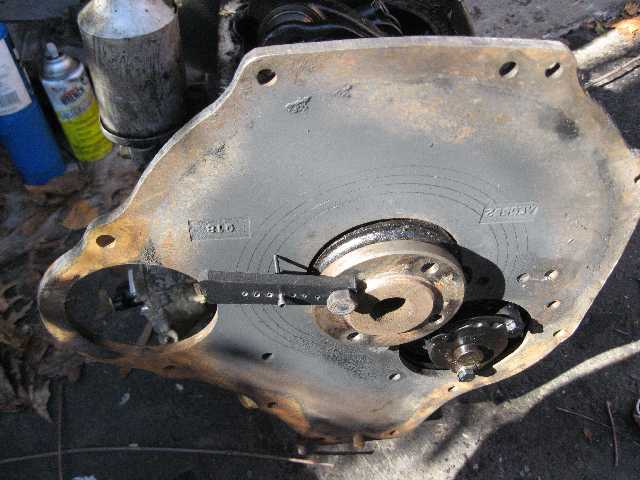

Here you see a bar made of Derin screwed firmly onto the crank with a ground screw cutting lines onto the plate.

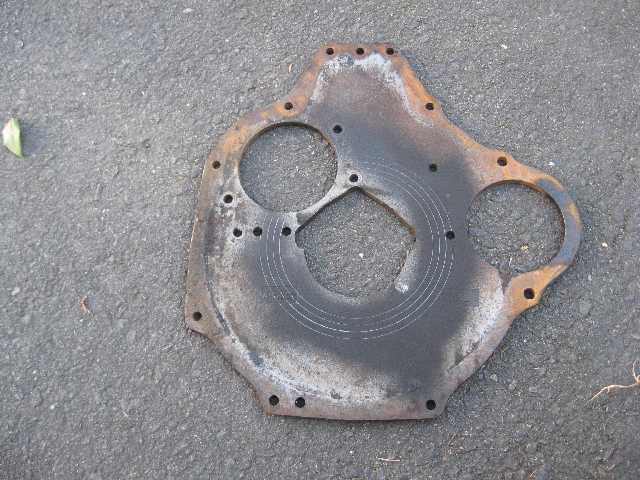

The etched circles.

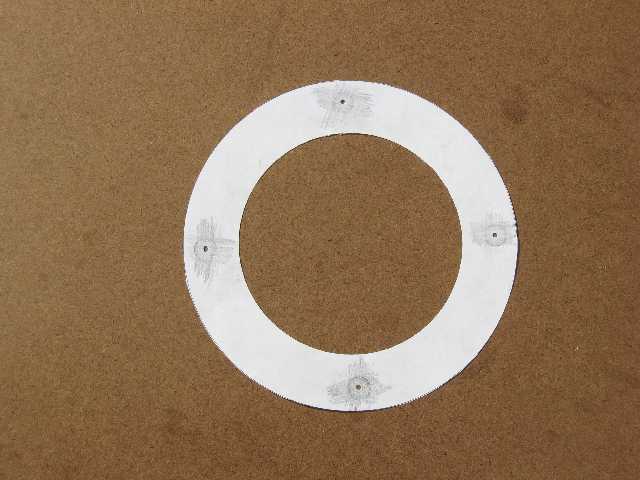

A cut-out paper template

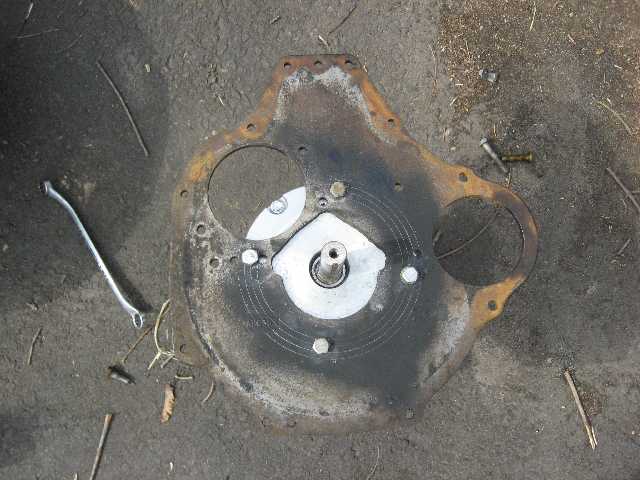

The template being used to mark the adapter plate.

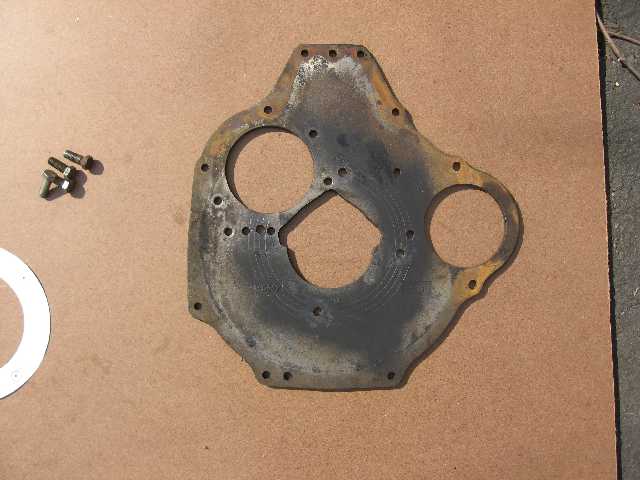

The adapter plate after being drilled....perfect.
The motor being test fitted to the adapter plate.

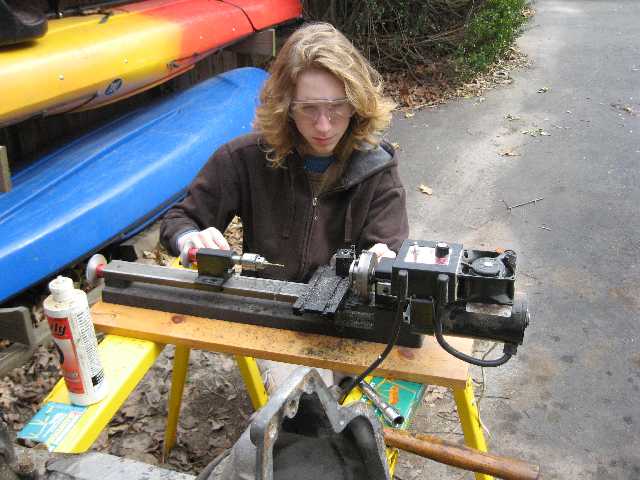

Isaac turning the stop.

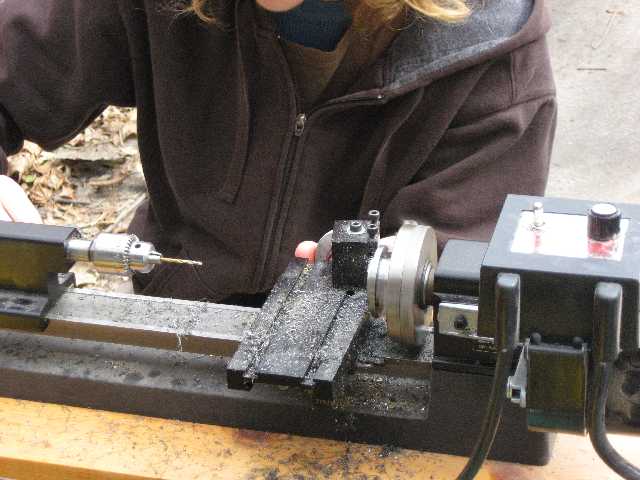

Close up of the stop being turned.

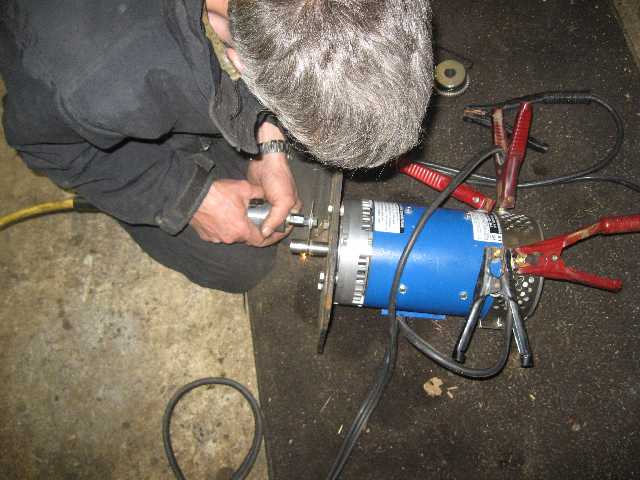

Steve Erickson marking the cut point. The motor shaft was actually cut using a hack saw while the motor turned while connected to a battery charger.

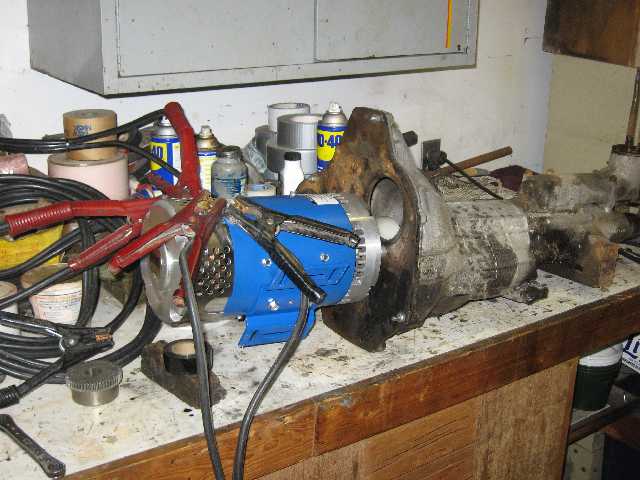

The coupled motor being bench tested with a battery charger.
