Sometime during the winter.......

The Coupler
This short set describes the coupler connecting the electric motor to the transmission. The idea was to keep the gyroscopic mass to a minimum.

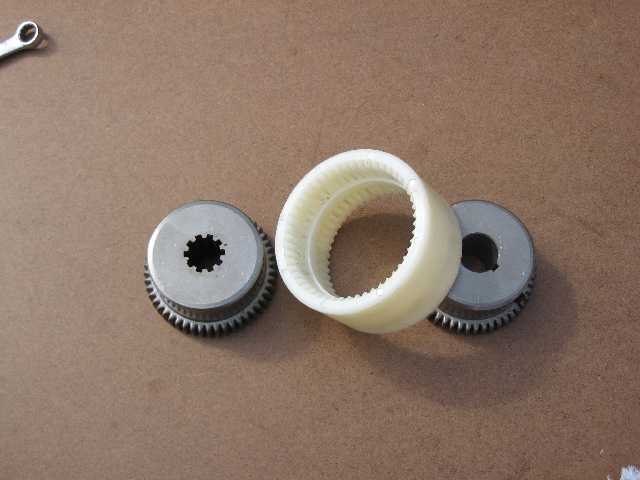

These were ordered from McMaster-Carr. See next image
The part on the left was cut to fit the transmission spline at Todd Tool & Machine US Hwy 130 Florence, NJ 08518 609-499-0407

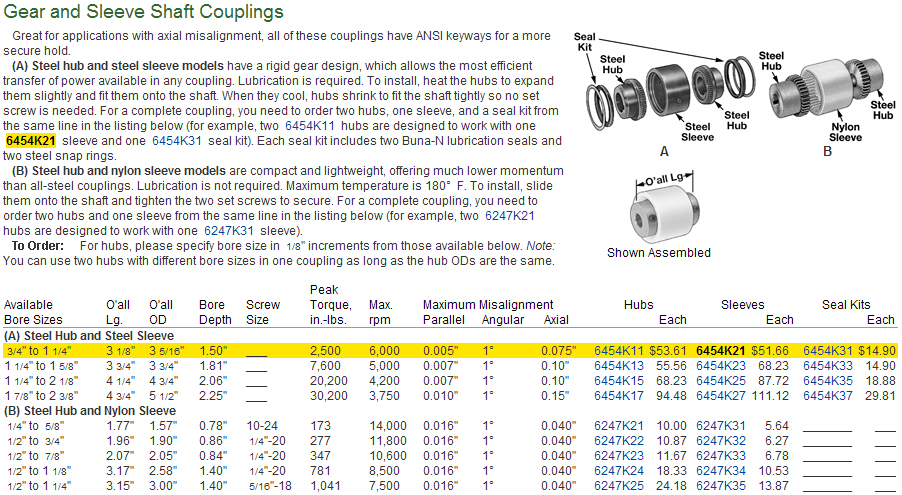

Catalog screen shot.

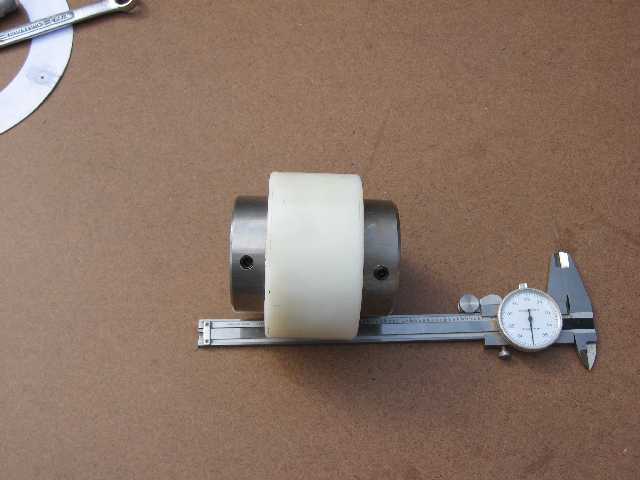

Here you see them fitted together
